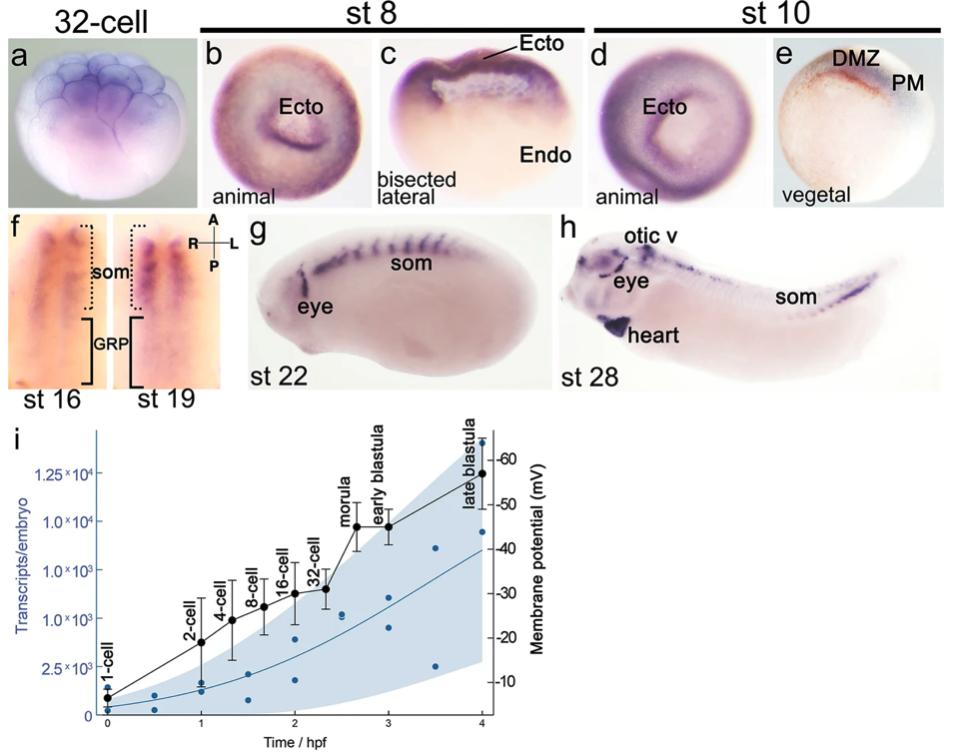

Fig. 2: kcnh6 expression analysis for kcnh6 during Xenopus development. a–h kcnh6 transcripts were detected by a full-length antisense probe via WMISH. Embryos and tissues displayed are in the following orientations: a animal pole to the top, b animal pole view c bisected with animal pole to the top, d animal pole view, e vegetal view and dorsal to the top, f gastrocoel roof plate with anterior to the top and vegetal view, g, h lateral view with anterior to the left and dorsal to the top; Ecto prospective ectoderm, Endo prospective endoderm, DMZ dorsal marginal zone (mesoderm), PM paraxial mesoderm, som somites, GRP gastrocoel roof plate. Representative images from N = 60 embryos (per developmental stage) over 3 independent experiments. i kcnh6 transcripts19 (blue) and Vm16 (black) plotted during early Xenopus development. Blue dots represent mean transcript levels by temporal resolution RNA-seq, while blue shaded region marks Gaussian process 95% confidence interval of the data; n = 2 biological replicate time courses in original study. Membrane potential is presented as mean ± SD from at least n = 14 embryos in original study.
Image published in: Sempou E et al. (2022)
© The Author(s) 2022, corrected publication 2023. Creative Commons Attribution license
| Gene | Synonyms | Species | Stage(s) | Tissue |
|---|---|---|---|---|
| kcnh6 | erg2, herg2, LOC108700861, LOC108702565 | X. tropicalis | Throughout NF stage 6 (32-cell) | animal pole animal blastomere |
| kcnh6 | erg2, herg2, LOC108700861, LOC108702565 | X. tropicalis | Throughout NF stage 8 | ectoderm animal cap animal cap inner layer animal cap outer layer |
| kcnh6 | erg2, herg2, LOC108700861, LOC108702565 | X. tropicalis | Throughout NF stage 10 | presumptive paraxial mesoderm dorsal marginal zone |
| kcnh6 | erg2, herg2, LOC108700861, LOC108702565 | X. tropicalis | Sometime during NF stage 16 to NF stage 19 | somite gastrocoel roof plate |
| kcnh6 | erg2, herg2, LOC108700861, LOC108702565 | X. tropicalis | Throughout NF stage 22 | somite trigeminal placode |
| kcnh6 | erg2, herg2, LOC108700861, LOC108702565 | X. tropicalis | Throughout NF stage 28 | heart lens trigeminal placode otic vesicle spinal cord caudal presomitic mesoderm olfactory placode |
