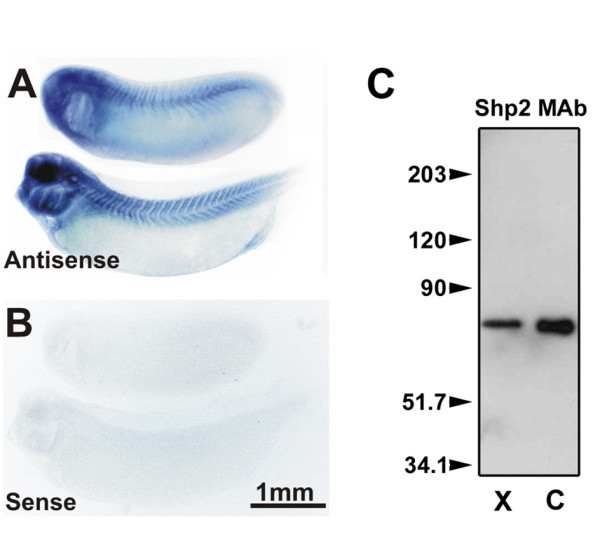

Figure 1. Shp2 expression in embryonic Xenopus muscle. In situ hybridization assays for Shp2 mRNA were carried out with anti-sense (A) and control sense (B) probes using stage 22 (A and B, upper) and 28 (lower) Xenopus embryos. Specific labeling was observed with Shp2 mRNA anti-sense probe in myotomal muscle and brain. C. TX-100 total protein extracts of Xenopus tadpole tail muscle ("X") and cultured C2 myotubes ("C") were immunoblotted with an anti-Shp2 monoclonal antibody. A band of about 70 kD was observed in both samples. Positions of molecular weight markers are indicated on the left.
Image published in: Qian YK et al. (2008)
Copyright © 2008 Qian et al; licensee BioMed Central Ltd. Creative Commons Attribution license
| Gene | Synonyms | Species | Stage(s) | Tissue |
|---|---|---|---|---|
| ptpn11b.L | ptpn11, ptpn11-b | X. laevis | Throughout NF stage 22 | muscle somite neural tube posterior neural tube anterior neural tube |
| ptpn11b.L | ptpn11, ptpn11-b | X. laevis | Throughout NF stage 28 | muscle brain central nervous system spinal cord somite pharyngeal region pharyngeal arch |
Image source: Published
Permanent Image Page
Printer Friendly View
XB-IMG-123169
