XB-ART-38139J Cell Sci 2008 Aug 01;121Pt 15:2565-77. doi: 10.1242/jcs.024943.
Show Gene links Show Anatomy links
Enhancement of axonal regeneration by in vitro conditioning and its inhibition by cyclopentenone prostaglandins.
Axonal regeneration is enhanced by the prior ;conditioning' of peripheral nerve lesions. Here we show that Xenopus dorsal root ganglia (DRG) with attached peripheral nerves (PN-DRG) can be conditioned in vitro, thereafter showing enhanced neurotrophin-induced axonal growth similar to preparations conditioned by axotomy in vivo. Actinomycin D inhibits axonal outgrowth from freshly dissected PN-DRG, but not from conditioned preparations. Synthesis of mRNAs that encode proteins necessary for axonal elongation might therefore occur during the conditioning period, a suggestion that was confirmed by oligonucleotide microarray analysis. Culturing PN-DRG in a compartmentalized system showed that inhibition of protein synthesis (but not RNA synthesis) in the distal nerve impaired the conditioning response, suggesting that changes in gene expression in cultured DRG depend on the synthesis and retrograde transport of protein(s) in peripheral nerves. The culture system was also used to demonstrate retrograde axonal transport of several proteins, including thioredoxin (Trx). Cyclopentenone prostaglandins, which react with Trx, blocked the in vitro conditioning effect, whereas inhibition of other signalling pathways thought to be involved in axonal regeneration did not. This suggests that Trx and/or other targets of these electrophilic prostaglandins regulate axonal regeneration. Consistent with this hypothesis, morpholino-induced suppression of Trx expression in dissociated DRG neurons was associated with reduced neurite outgrowth.
PubMed ID: 18650498
Article link: J Cell Sci
Species referenced: Xenopus
Genes referenced: abcb1 ackr3 adm aire arg1 atf3 aurkb basp1 bdnf camk2a ccnb1.2 cebpb cnn1 cuedc2 dpepe drg1 eif4a1 erg fcn1 furin gap43 gata2 gstp1 h2bc14 igf2 igf2bp3 inhbc.1 itga7 jak2 jun lgals1.1 lmnb1 mad2l1 mapk8 mcm4 mt4 ncaph nhlh1 npm3 ntf3 ntf4 ntrk1 pax2 prdm1 prkca prkcg pxn ras-dva1 rhoq s100a10 sfrp1 sox7 stat3.1 tnfrsf12a tnpo1 txn vim XB5909790 [provisional]
Morpholinos: txn MO1
Article Images: [+] show captions
|Fig. 1. (A-F) Axonal outgrowth from freshly dissected (A,C,E) and in-vitro conditioned (B,D,F) PN-DRG. In vitro conditioned PN-DRG show enhanced BDNF-induced axonal outgrowth in the presence or absence of ActD. After 3 days in collagen gels, freshly dissected PN-DRG show limited axonal growth (A) that is markedly increased by BDNF (C) but not in the presence of ActD (E). In vitro conditioned preparations show slightly increased axonal outgrowth (B) that is greatly enhanced by BDNF (D), even in the presence of ActD (F). Note that not all axons are within the plane of focus. Scale bar: 200 μm.|
|Fig. 2. Transcriptional dependence of axonal growth. (A) Mean axonal outgrowth distances from freshly dissected and in vitro conditioned PN-DRG in collagen gels after 3 days, in response to BDNF in the presence or absence of ActD. Conditioned PN-DRG show enhancement of both spontaneous and BNDF-induced axonal growth. ActD inhibits BDNF-induced axonal outgrowth from freshly dissected preparations but not from conditioned preparations. (B) Effects of prior incubation with α-AM on subsequent BDNF-induced axonal outgrowth in the presence or absence of ActD. Preparations were incubated (free-floating) for 4 days with α-AM present on day 1, day 4 or not at all, prior to culturing in collagen gels for 3 days with or without BDNF. Incubation with α-AM on day 1 strongly inhibits subsequent BDNF-induced axonal outgrowth in collagen gels, but incubation with α-AM on day 4 does not.|
|Fig. 3. In vivo conditioned PN-DRG show enhanced BDNF-induced axonal outgrowth in the presence or absence of ActD. (A,B) Mean axonal outgrowth distances from (A) 3-day or (B) 5-day in vivo conditioned PN-DRG (hatched bars) and contralateral controls (open bars) after 3 days in collagen gels. BDNF enhances axonal outgrowth from control PN-DRG, but this response is greatly reduced by ActD. In vivo conditioned preparations show enhanced spontaneous and BDNF-induced axonal growth, even in the presence of ActD.|
|Fig. 4. Validation of microarray data using qPCR. Analysis of mRNAs isolated from freshly dissected and 3-day in vitro conditioned DRG using qPCR. The level of expression for each gene in cultured DRG is normalized to that in freshly dissected DRG in each case.|
|Fig. 5. AG490 inhibits axonal growth in freshly dissected and in vitro conditioned PN-DRG. (A) Incubation of PN-DRG with AG490 (50 μM) for 3 days significantly reduced subsequent BDNF-induced axonal outgrowth in the presence or absence of ActD (P<0.001 or P<0.005, respectively). (B) However, BDNF-induced axonal outgrowth from both freshly dissected and conditioned preparations was also strongly inhibited in the presence of AG490 at concentrations as low as 2 μM (mean values from two pooled experiments).|
|Fig. 6. In vitro conditioning is impaired by inhibition of protein synthesis in the peripheral nerve. PN-DRG were incubated for 3 days in compartmentalized culture dishes, with the end of the peripheral nerve in the inner compartment (with or without CHX), prior to culturing the DRG and proximal part of the peripheral nerve (which had not been exposed to CHX) in collagen gels with BDNF (with or without ActD). Protein synthesis inhibition in the peripheral nerve significantly reduced subsequent BDNF-induced axonal outgrowth in the presence of ActD.|

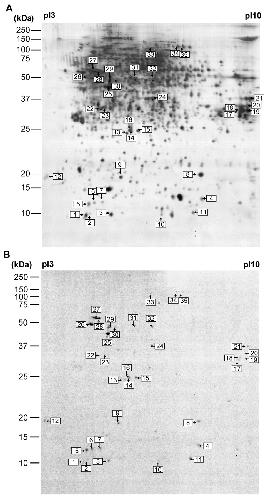

|Fig. 7. Retrograde axonal transport of proteins in vitro. (A,B) Representative 2-DE separation of proteins from DRG after culture in compartmentalized culture dishes with the end of the peripheral nerve incubated with [35S]methionine-[35S]cysteine for 2 days. In the autoradiograph of the gel shown in A, up to 100 radioactive spots are visible, of which ∼35 (arrows) were also seen in autoradiographs of gels from other experiments. The silver-stained gel in B showns many more spots, of which only a small subset correspond to those on the autoradiograph (arrows).|
|Fig. 8. Isolated axon preparations. (A-D) BDNF-stimulated axonal growth, visualized by Calcein Orange-Red fluorescence (A) is associated with migrating cells whose nuclei are labeled by DAPI (B). Axons that have extended through a Nuclepore membrane (C) are devoid of migrating cells (D). The bright foci that are visible in C represent localized thickenings of axons, not cells, as shown by the absence of DAPI labeling in D. Scale bar, 100 μm.|

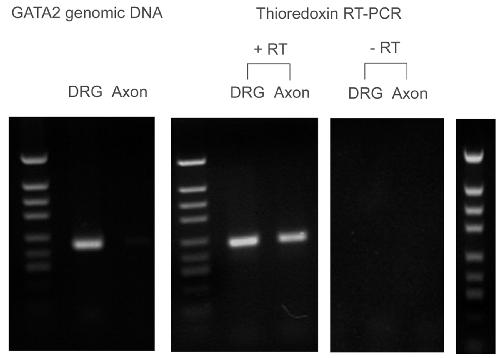

|Fig. 9. Absence of cellular contamination of axonal RNA samples. Agarose gel stained with ethidium bromide. A strong signal for GATA2 genomic sequence is seen in the DRG samples only. By contrast, Trx can readily be detected in cDNA prepared from both DRG and axonal samples (+RT). The predicted sizes for GATA2 and Trx amplicons are 216 bp and 226 bp, respectively. No products were amplified when reverse transcriptase was omitted from the reactions (–). Lanes at the edges of the figure represent HpaII-digested Bluescript vector as a size marker.|

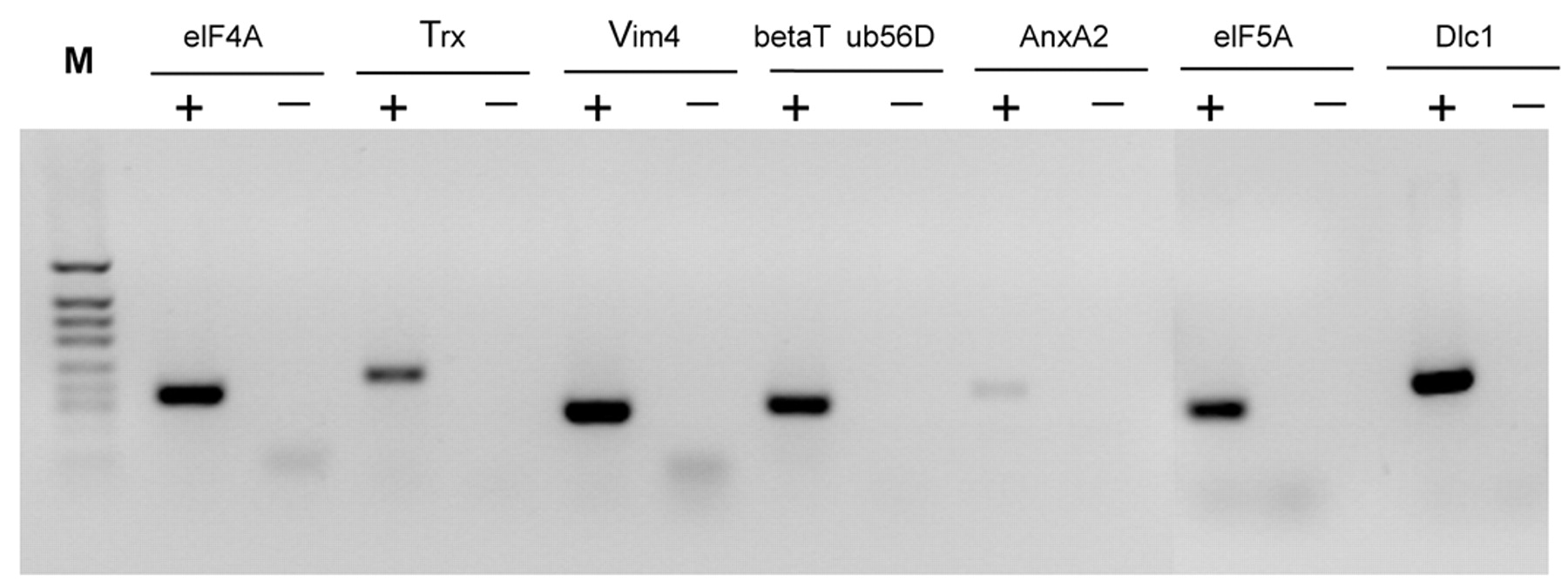

|Fig. 10. Detection of axonal mRNAs by RT-PCR. Seven representative retrogradely transported axonal proteins that comprise elongation-initiation factor 4A (eIF4A), elongation-initiation factor 5A (eIF5A), Trx, vimentin 4 (Vim4), β-tubulin at 56 D (betaTub56D), calpactin 1 light chain (AnxA2), and dynein light chain 1 (Dlc1) were selected to determine whether their corresponding transcripts were present in axonal RNA extracts using primers described in Table 1. The predicted sizes of the amplified products of these cDNAs are 175, 163, 226, 150, 163, 200 and 223 bp respectively. Although there is variability in the levels of each of the amplicons, expression can be seen in each case (+). No products were amplified when reverse transcriptase was omitted from the reactions (–). M, HpaII-digested Bluescript vector as a size marker.|
|Fig. 11. The in vitro conditioning effect on axonal growth is blocked by cyclopentenone prostaglandins. (A,B) PN-DRG were incubated for 4 days (free-floating) with either PGA1 (A) or 15d-PGJ2 (B) present on day 1, day 4 or not present prior to incubation in gels for 3 days with BDNF. Incubation with the prostaglandins on day 1 strongly inhibited subsequent BDNF-induced axonal growth (in the presence or absence of ActD), but not if added on day 4.|
|Fig. 12. MO targeting Trx reduces neurite outgrowth from dissociated DRG neurons. (A-H), dissociated DRG neurons nucleofected with carboxyfluorescein-labelled β-globin MO. Images shown in A, B or C represent the same field of cells viewed using FITC, TRITC filters or phase contrast, respectively. (A) Most of the cells are carboxyfluorescein-positive and, although signal has preferentially accumulated in the nucleus, extensive fluorescence is also associated with the cytoplasm. (B) Non-specific labelling with TRITC-conjugated anti-rabbit IgG (in the absence of primary antibody), serving as a control for (D) which is immunostained for Trx. (E) is a phase-contrast image of (D). (F), β-globin MO nucleoporated DRG neurons immunostained for Trx. (G,H), lower magnification images labelled with Calcein of freshly dissected (G) or conditioned (H) DRG neurons. (I-K) Images equivalent to those shown in F-H, but neurons were electroporated with a Trx MO. Note that immunofluorescence of Trx is reduced in the Trx MO-treated neurons and also that in this latter case the extent of neurite outgrowth is significantly reduced in freshly dissociated (but not conditioned) neurons. Scale bars, 50 μm. Magnifications of A-F and I, G and J, H and K are identical.|
