EMBO Rep
2024 Jun 28; doi: 10.1038/s44319-024-00188-5.
Show Gene links
Show Anatomy links
Cell cycle length governs heterochromatin reprogramming during early development in non-mammalian vertebrates.
Fukushima HS
,
Ikeda T
,
Ikeda S
,
Takeda H
.
???displayArticle.abstract???
Heterochromatin marks such as H3K9me3 undergo global erasure and re-establishment after fertilization, and the proper reprogramming of H3K9me3 is essential for early development. Despite the widely conserved dynamics of heterochromatin reprogramming in invertebrates and non-mammalian vertebrates, previous studies have shown that the underlying mechanisms may differ between species. Here, we investigate the molecular mechanism of H3K9me3 dynamics in medaka (Japanese killifish, Oryzias latipes) as a non-mammalian vertebrate model, and show that rapid cell cycle during cleavage stages causes DNA replication-dependent passive erasure of H3K9me3. We also find that cell cycle slowing, toward the mid-blastula transition, permits increasing nuclear accumulation of H3K9me3 histone methyltransferase Setdb1, leading to the onset of H3K9me3 re-accumulation. We further demonstrate that cell cycle length in early development also governs H3K9me3 reprogramming in zebrafish and Xenopus laevis. Together with the previous studies in invertebrates, we propose that a cell cycle length-dependent mechanism for both global erasure and re-accumulation of H3K9me3 is conserved among rapid-cleavage species of non-mammalian vertebrates and invertebrates such as Drosophila, C. elegans, Xenopus and teleost fish.
JP23K14121 MEXT | Japan Society for the Promotion of Science (JSPS), JP22K20625 MEXT | Japan Society for the Promotion of Science (JSPS), JP23K14190 MEXT | Japan Society for the Promotion of Science (JSPS), JP18gm1110007h0001 Japan Agency for Medical Research and Development (AMED)
Figure 6. Heterochromatin establishment during the MBT is cell cycle length-dependent in X. laevis.
(A) Schematic illustration of X. laevis embryo development before and after the MBT. (B) Immunofluorescence staining of H3K9me3 in control (stage 9 and stage 10) and α-amanitin-injected (stage 10) X. laevis embryo. (C) Quantification of (B). Each dot indicates the average of ~20 cells in a single broad field slice image of single embryo. Two-sided Welch’s t-test. Bars indicate the means. n = 23, 22 and 19 embryos for the control stage 9, control stage 10 and α-amanitin stage 10, respectively. Data were pooled from two independent experiments. (D) Phenotype of α-amanitin-injected X. laevis embryos. Unlike control embryos, α-amanitin-injected embryos failed to form dorsal lip at 10.5 hpf, indicating defects in gastrulation. (E) Schematic summarizing chk1 injection (top) and animal view of chk1-injected X. laevis embryos (bottom). Stages highlighted in green were compared in (F) and (G). To compare developmental stages, cells at the animal poles are shown in magnified views (yellow squares). (F) Immunofluorescence staining of H3 and H3K9me3 in the chk1 injection at the stage 9. (G) Quantification of (F). Each dot indicates the average of ~10 cells in a single broad field slice image of single embryo. Two-sided Wilcoxon rank-sum test. Bars indicate the means. n = 21 and 14 embryos for the control 7 hpf and chk1 9 hpf, respectively. Data were pooled from three independent experiments. ***p < 0.001, NS: not significant. Source data are available online for this figure.
Figure 7. Cell cycle length governs both erasure and re-establishment of heterochromatin during early development in non-mammalian vertebrates.

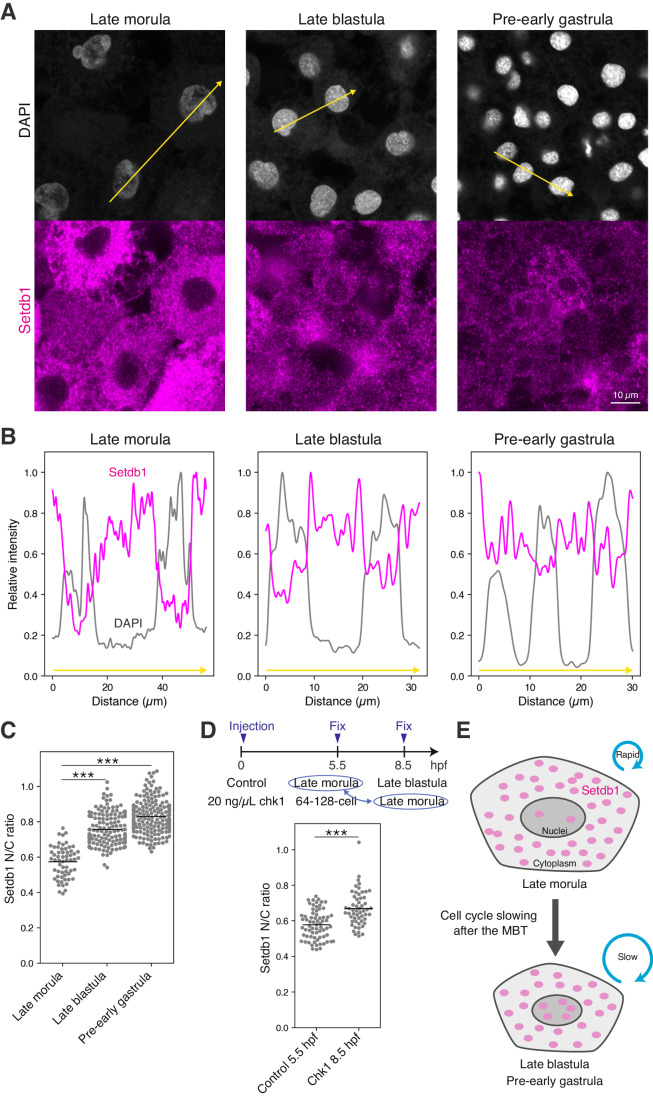

Schematic summarizing the model of H3K9me3 reprogramming in non-mammalian vertebrates. Cell cycles in fertilized eggs and cleavage embryos are very rapid in non- mammalian vertebrates. This prevents Setdb1 (magenta dots) from accumulating in nuclei, resulting in DNA replication-dependent gradual erasure of H3K9me3 (green intensity in nuclei). However, cell cycles were prolonged from the MBT. Hereafter, Setdb1 can sufficiently accumulate in nuclei during the slowing of cell cycles, increasing H3K9me3 levels in blastula and gastrula embryos.
Allshire,
Ten principles of heterochromatin formation and function.
2018, Pubmed
Allshire,
Ten principles of heterochromatin formation and function.
2018,
Pubmed
Amodeo,
Histone titration against the genome sets the DNA-to-cytoplasm threshold for the Xenopus midblastula transition.
2015,
Pubmed
,
Xenbase
Ayrapetov,
DNA double-strand breaks promote methylation of histone H3 on lysine 9 and transient formation of repressive chromatin.
2014,
Pubmed
Bessler,
Differential localization and independent acquisition of the H3K9me2 and H3K9me3 chromatin modifications in the Caenorhabditis elegans adult germ line.
2010,
Pubmed
Burton,
Heterochromatin establishment during early mammalian development is regulated by pericentromeric RNA and characterized by non-repressive H3K9me3.
2020,
Pubmed
Chan,
Brd4 and P300 Confer Transcriptional Competency during Zygotic Genome Activation.
2019,
Pubmed
Chari,
Histone concentration regulates the cell cycle and transcription in early development.
2019,
Pubmed
Chen,
Spatiotemporal Patterning of Zygotic Genome Activation in a Model Vertebrate Embryo.
2019,
Pubmed
,
Xenbase
Chen,
Nascent transcriptome reveals orchestration of zygotic genome activation in early embryogenesis.
2022,
Pubmed
,
Xenbase
Cho,
Regulated nuclear entry of over-expressed Setdb1.
2013,
Pubmed
Chung,
Histone Demethylase Expression Enhances Human Somatic Cell Nuclear Transfer Efficiency and Promotes Derivation of Pluripotent Stem Cells.
2015,
Pubmed
Collart,
Titration of four replication factors is essential for the Xenopus laevis midblastula transition.
2013,
Pubmed
,
Xenbase
Collart,
Chk1 Inhibition of the Replication Factor Drf1 Guarantees Cell-Cycle Elongation at the Xenopus laevis Mid-blastula Transition.
2017,
Pubmed
,
Xenbase
Fukushima,
Incomplete erasure of histone marks during epigenetic reprogramming in medaka early development.
2023,
Pubmed
Furutani-Seiki,
Medaka and zebrafish, an evolutionary twin study.
2004,
Pubmed
Hilbert,
Transcription organizes euchromatin via microphase separation.
2021,
Pubmed
Hontelez,
Embryonic transcription is controlled by maternally defined chromatin state.
2015,
Pubmed
,
Xenbase
Ichikawa,
Centromere evolution and CpG methylation during vertebrate speciation.
2017,
Pubmed
Iwamatsu,
Stages of normal development in the medaka Oryzias latipes.
2004,
Pubmed
Joseph,
Competition between histone and transcription factor binding regulates the onset of transcription in zebrafish embryos.
2017,
Pubmed
Jukam,
Zygotic Genome Activation in Vertebrates.
2017,
Pubmed
Jullien,
Gene Resistance to Transcriptional Reprogramming following Nuclear Transfer Is Directly Mediated by Multiple Chromatin-Repressive Pathways.
2017,
Pubmed
,
Xenbase
Kappas,
Dissection of the XChk1 signaling pathway in Xenopus laevis embryos.
2000,
Pubmed
,
Xenbase
Keller,
Reconstruction of zebrafish early embryonic development by scanned light sheet microscopy.
2008,
Pubmed
Kimmel,
Stages of embryonic development of the zebrafish.
1995,
Pubmed
,
Xenbase
Laue,
The maternal to zygotic transition regulates genome-wide heterochromatin establishment in the zebrafish embryo.
2019,
Pubmed
Liu,
H3K9 demethylase KDM4E is an epigenetic regulator for bovine embryonic development and a defective factor for nuclear reprogramming.
2018,
Pubmed
Love,
Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2.
2014,
Pubmed
Matoba,
Embryonic development following somatic cell nuclear transfer impeded by persisting histone methylation.
2014,
Pubmed
Mutlu,
Distinct functions and temporal regulation of methylated histone H3 during early embryogenesis.
2019,
Pubmed
Mutlu,
Regulated nuclear accumulation of a histone methyltransferase times the onset of heterochromatin formation in C. elegans embryos.
2018,
Pubmed
Nakamura,
CTCF looping is established during gastrulation in medaka embryos.
2021,
Pubmed
Nakamura,
Large hypomethylated domains serve as strong repressive machinery for key developmental genes in vertebrates.
2014,
Pubmed
Osumi,
Essential roles of Windei and nuclear monoubiquitination of Eggless/SETDB1 in transposon silencing.
2019,
Pubmed
Padeken,
Establishment of H3K9-methylated heterochromatin and its functions in tissue differentiation and maintenance.
2022,
Pubmed
Pálfy,
Chromatin accessibility established by Pou5f3, Sox19b and Nanog primes genes for activity during zebrafish genome activation.
2020,
Pubmed
Sankar,
KDM4A regulates the maternal-to-zygotic transition by protecting broad H3K4me3 domains from H3K9me3 invasion in oocytes.
2020,
Pubmed
Schindelin,
Fiji: an open-source platform for biological-image analysis.
2012,
Pubmed
Seller,
Rapid embryonic cell cycles defer the establishment of heterochromatin by Eggless/SetDB1 in Drosophila.
2019,
Pubmed
Shen,
Comprehensive maturity of nuclear pore complexes regulates zygotic genome activation.
2022,
Pubmed
Shindo,
Excess histone H3 is a competitive Chk1 inhibitor that controls cell-cycle remodeling in the early Drosophila embryo.
2021,
Pubmed
Strong,
Interphase-arrested Drosophila embryos activate zygotic gene expression and initiate mid-blastula transition events at a low nuclear-cytoplasmic ratio.
2020,
Pubmed
Sudou,
Transcription factors Mix1 and VegT, relocalization of vegt mRNA, and conserved endoderm and dorsal specification in frogs.
2016,
Pubmed
,
Xenbase
Tachibana,
Analysis of the subcellular localization of the human histone methyltransferase SETDB1.
2015,
Pubmed
Tadros,
The maternal-to-zygotic transition: a play in two acts.
2009,
Pubmed
Takeda,
The art of medaka genetics and genomics: what makes them so unique?
2010,
Pubmed
Tsusaka,
ATF7IP regulates SETDB1 nuclear localization and increases its ubiquitination.
2019,
Pubmed
Vastenhouw,
The maternal-to-zygotic transition revisited.
2019,
Pubmed
Wang,
Reprogramming of H3K9me3-dependent heterochromatin during mammalian embryo development.
2018,
Pubmed
Xu,
Epigenome in Early Mammalian Development: Inheritance, Reprogramming and Establishment.
2018,
Pubmed
Xu,
Unreprogrammed H3K9me3 prevents minor zygotic genome activation and lineage commitment in SCNT embryos.
2023,
Pubmed
Yang,
Allele-specific H3K9me3 and DNA methylation co-marked CpG-rich regions serve as potential imprinting control regions in pre-implantation embryo.
2022,
Pubmed
Yu,
Dynamic reprogramming of H3K9me3 at hominoid-specific retrotransposons during human preimplantation development.
2022,
Pubmed
Yuan,
TALE-light imaging reveals maternally guided, H3K9me2/3-independent emergence of functional heterochromatin in Drosophila embryos.
2016,
Pubmed
Zhang,
Widespread Enhancer Dememorization and Promoter Priming during Parental-to-Zygotic Transition.
2018,
Pubmed
Zhou,
Histone remodeling reflects conserved mechanisms of bovine and human preimplantation development.
2023,
Pubmed
